使用范圍/scope of use

12V-7AH、12V-9AH摩托車電池/Motorcycle battery

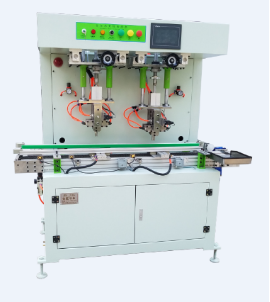

型號/type

JQMJ-26

加工能力/processing capacity

180只piece/小時hour

電源和功率/power source

AC380V, 50HZ ,2KW

設備重量（含附件）/weight

635kg

外形尺寸（包裝）/dimensions

1760mm×860mm×1740mm

工作臺面/working desk

1760mm×860mm

主要材質/main material

45#、Q235

特性描述：采用步進電機控制電池移動和定位，利用氣缸推動剪切頭對焊件產生扭力，在剪切刀接觸鉛件時讀取位移值，在剪切時間結束時再讀取位移值，若前后的位移比較大于設置值則判斷剪切開路，機器會報警并將不合格品剔除。/It uses a stepper motor to control the movement and positioning of the battery. Read the displacement value at the time, and then read the displacement value at the end of the cutting time. If the displacement before and after the comparison is greater than the set value, the cutting is judged to be open, and the machine will alarm and reject the unqualified products.

1、設備組成部分：電器控制、氣動控制、機架/Equipment components: electrical control, pneumatic control, rack
